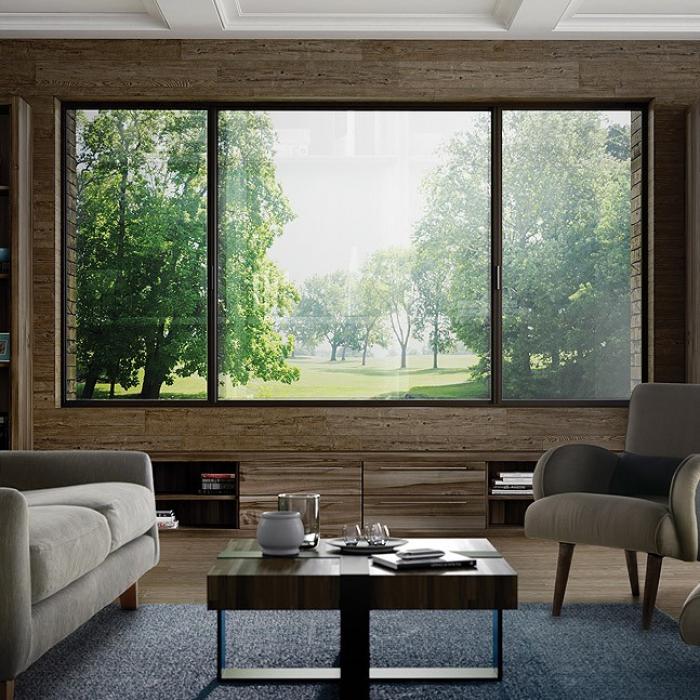

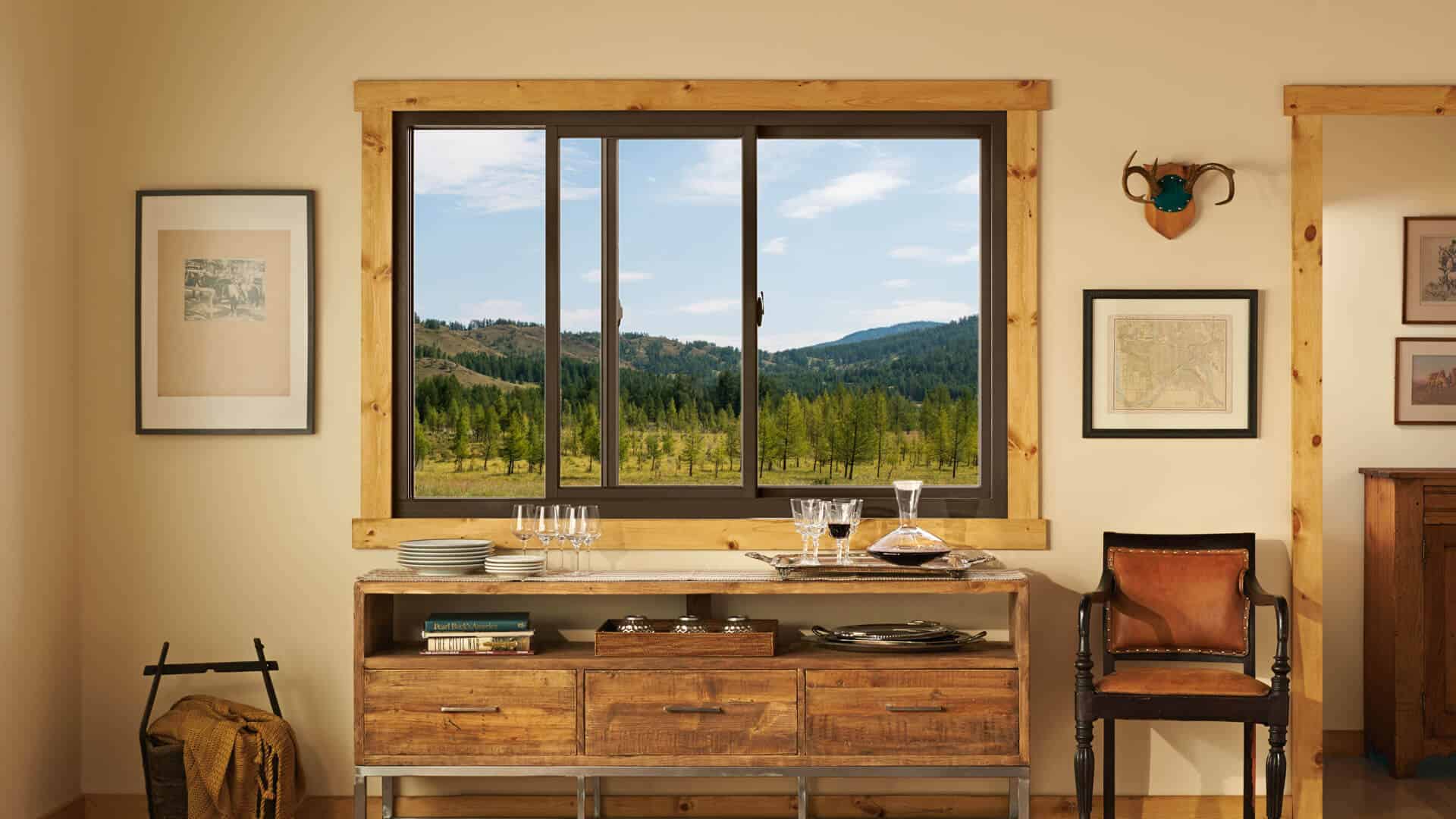

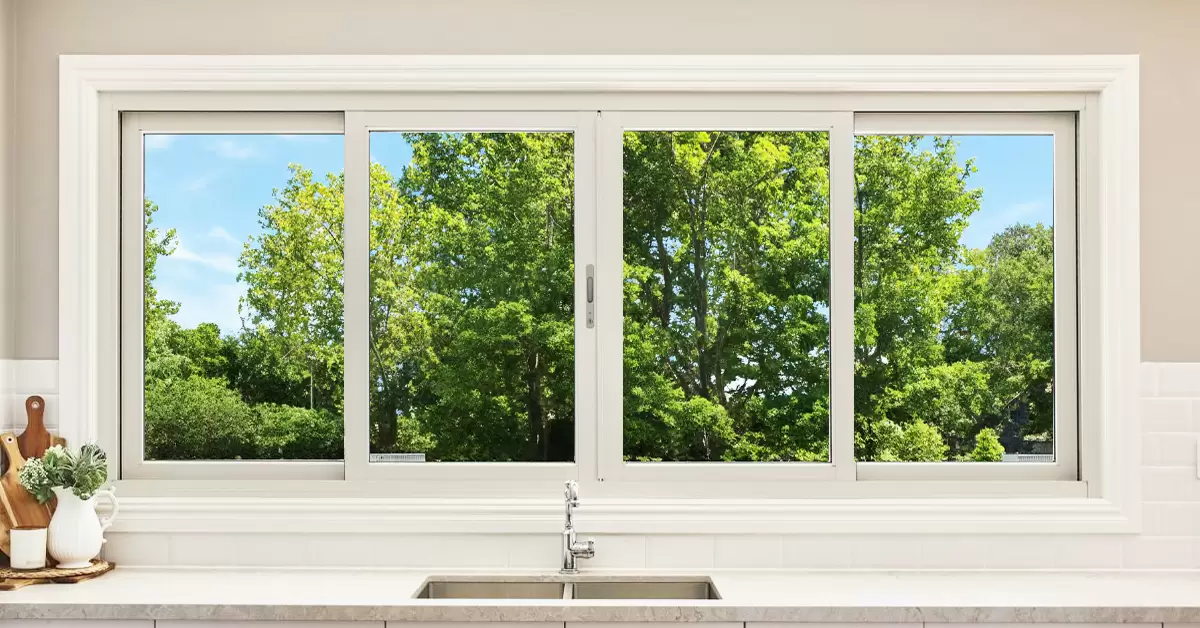

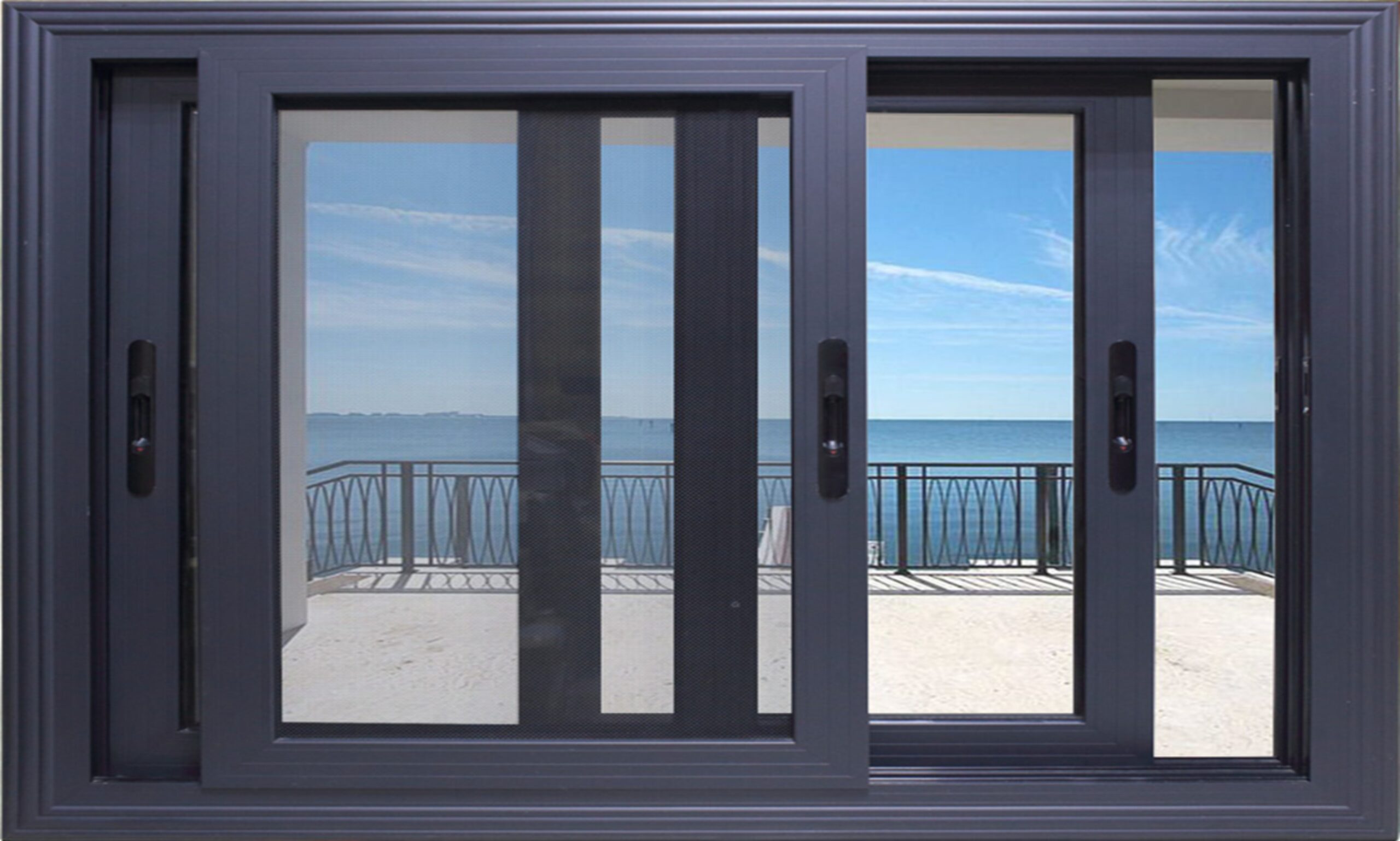

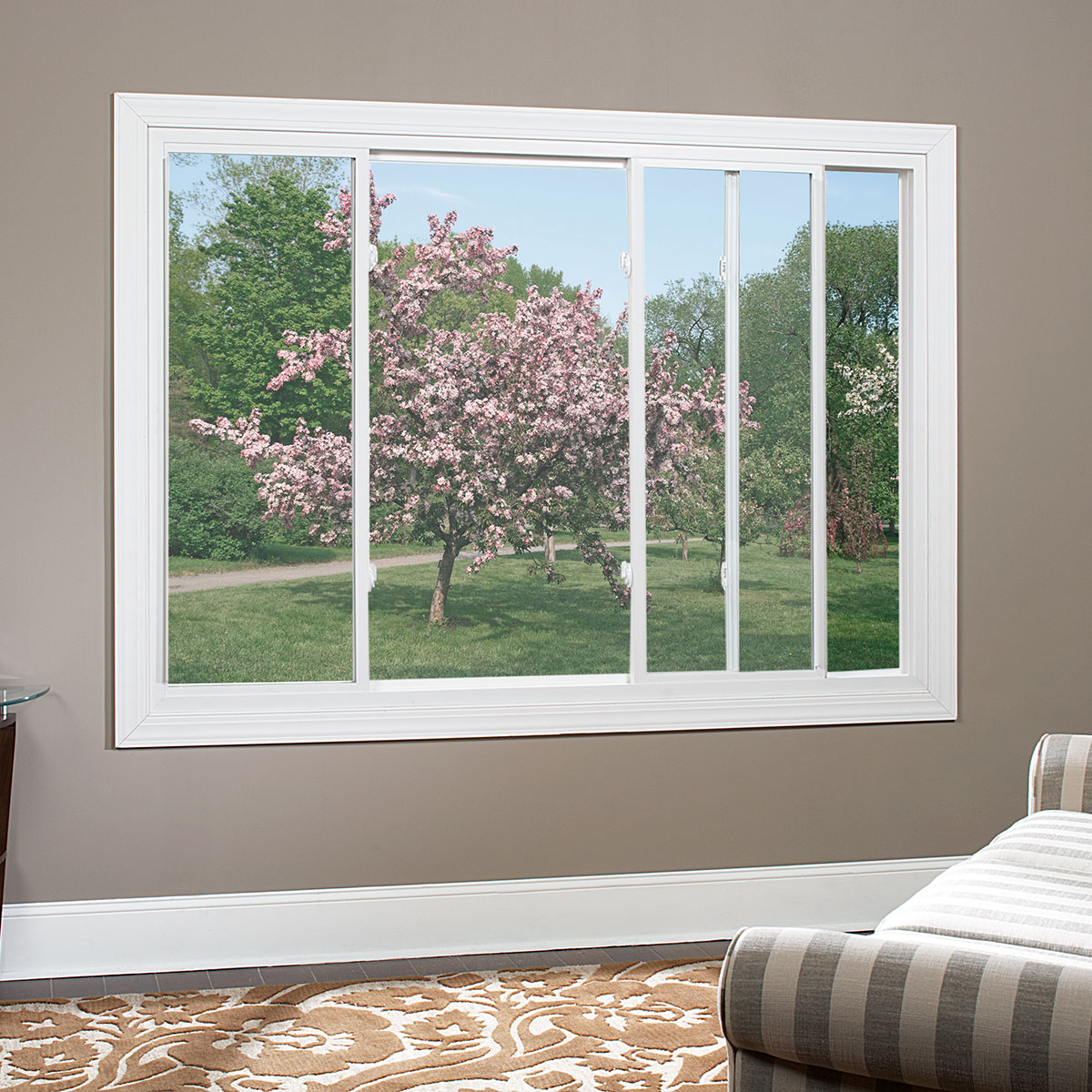

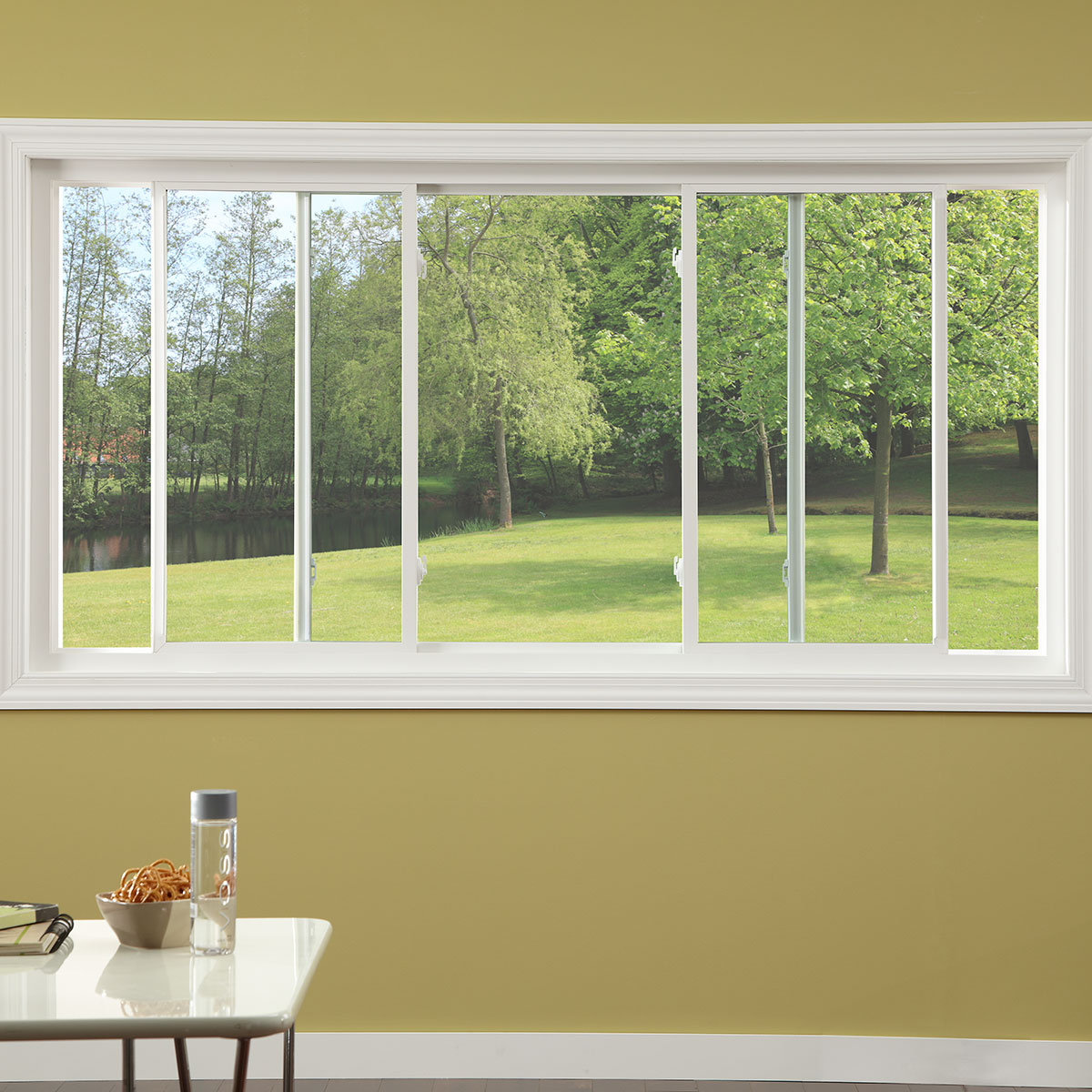

Smooth-Gliding Aluminum Sliding Window

Standard:AS2047

Design SLS:600pa
Design Water Resistance:200pa
SHGC Range:0.38-0.65
ULS:1200pa
UR Range:2.5-3.5
Sound Insulation:<40db

Our aluminium windows and doors are certified to meet the Australian Standard AS2047, ensuring reliable performance for residential and commercial applications across Australia. With a Design SLS of 600pa and ULS of 1200pa, they provide solid structural stability against moderate wind loads, making them suitable for suburban and urban areas. The Design Water Resistance of 200pa offers effective protection against rain penetration, preventing leaks and maintaining a dry indoor environment. The SHGC range of 0.38-0.65 balances natural light and solar heat control, optimizing energy efficiency and reducing reliance on artificial lighting and air conditioning. The UR range of 2.5-3.5 minimizes air leakage, enhancing thermal comfort, while sound insulation of <40db creates a quiet living space by blocking external noise. Crafted from premium aluminium alloys, our products are durable, corrosion-resistant, and require minimal maintenance. Explore our full range of AS2047 certified products to find the perfect solution for your project, trusted by the Aluminium Association for quality and compliance.

PRODUCTION CONFIGURATION

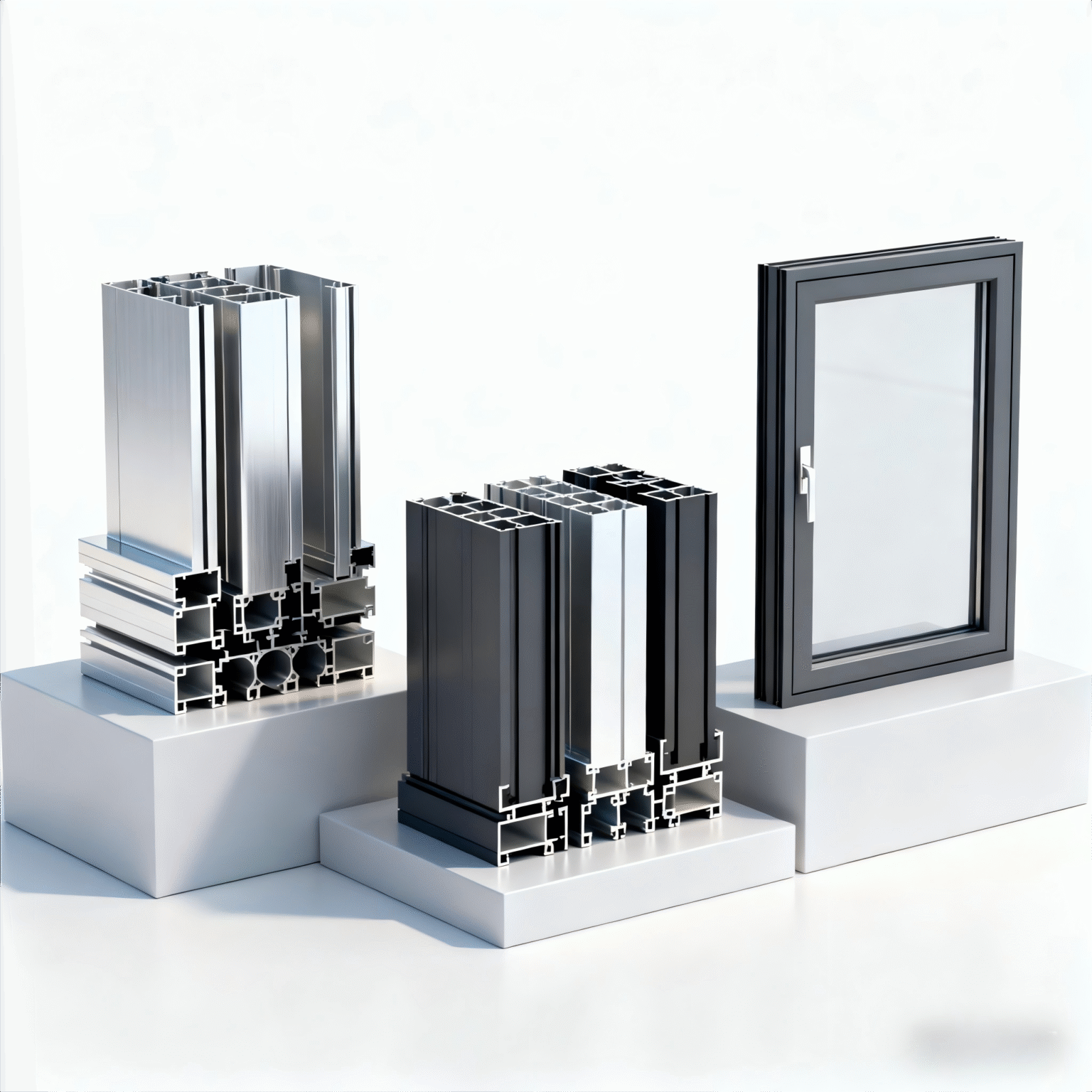

Extrusion Profile(mm):6063-T5 with1.6mm Thickness

Flyscree:0.5mm Stainless steel Flyscreen

Thermal break or Not: non-thermal break

Glass Configuration:5mm+9Ar+5mm

Hardware:China Brand/ Customized

Open Fan Size Limit(Heightmm):600-1600

Open Fan Size Limit (Width mm): 500-1100

Maximun Adaptive Weigth: 50kg

Frame Profile Depth: 80mm

Frame Profile Height: 40mm

Optional installation method:Timber Reveal/ Fin Fix/subhead/Subsill/L Angle

Powder Coating:10 years warranty(China Brand/Akzo-Nobel/Interpon/Tiger Available )

Color & Coating Options

Alloy Pro Commen Color: Frosted Black, White Powder Coating
Silver grey powder coating, Silver anodising with INTERPON powder
Woodland grey(Satin), Ironstone(Stain), Shale Grey(Satin)
Ultra Silver(Gloss), Dune(Sain), Paperbark(Satin), Primrose(Gloss)
White Birch(Gloss), Surfmist(Matt), Architectural White(Satin)
Pearl White(Gloss), Silver Pearl Kinetic(Satin), Black(Satin)
Monument(Matt), Clear, Residential Bronze
Cedar, Mahogany, Honey Gum, Snow Gum
Select between factory-prefinished colors for fast delivery, or customized colors to better match your home.

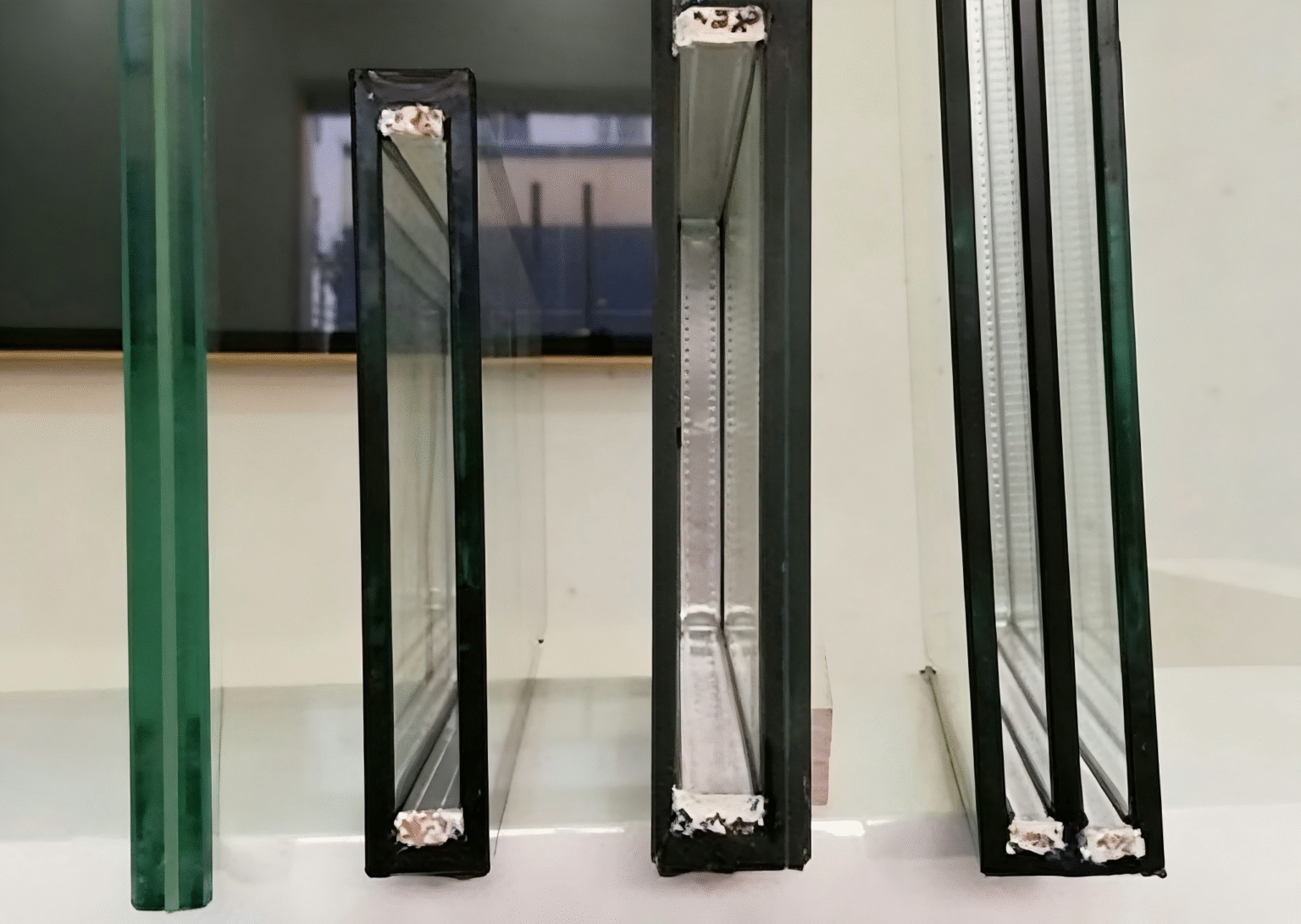

Glass Options

Single Glass(5mm, 6mm, 8mm, 10mm….)
Laminated Glass(5mm+0.76pvb+5mm)
Double Toughened Glass(5mm+12air+5mm)
Toughened Laminated Glass(5mm+12air+0.76pvb+5mm)
Triple Toughened Glass(5mm+12air+5mm+12air+5mm)
Thickness of single glass: 5-20mm
Glass types: Frosted glass, Toughened glass, Low-e coated glass
Special performance glass: Fireproof glass, Bulletproof glass
Select from various types of glass, including but not limited to: tinted, low-e, sound-proof and burglarproof.

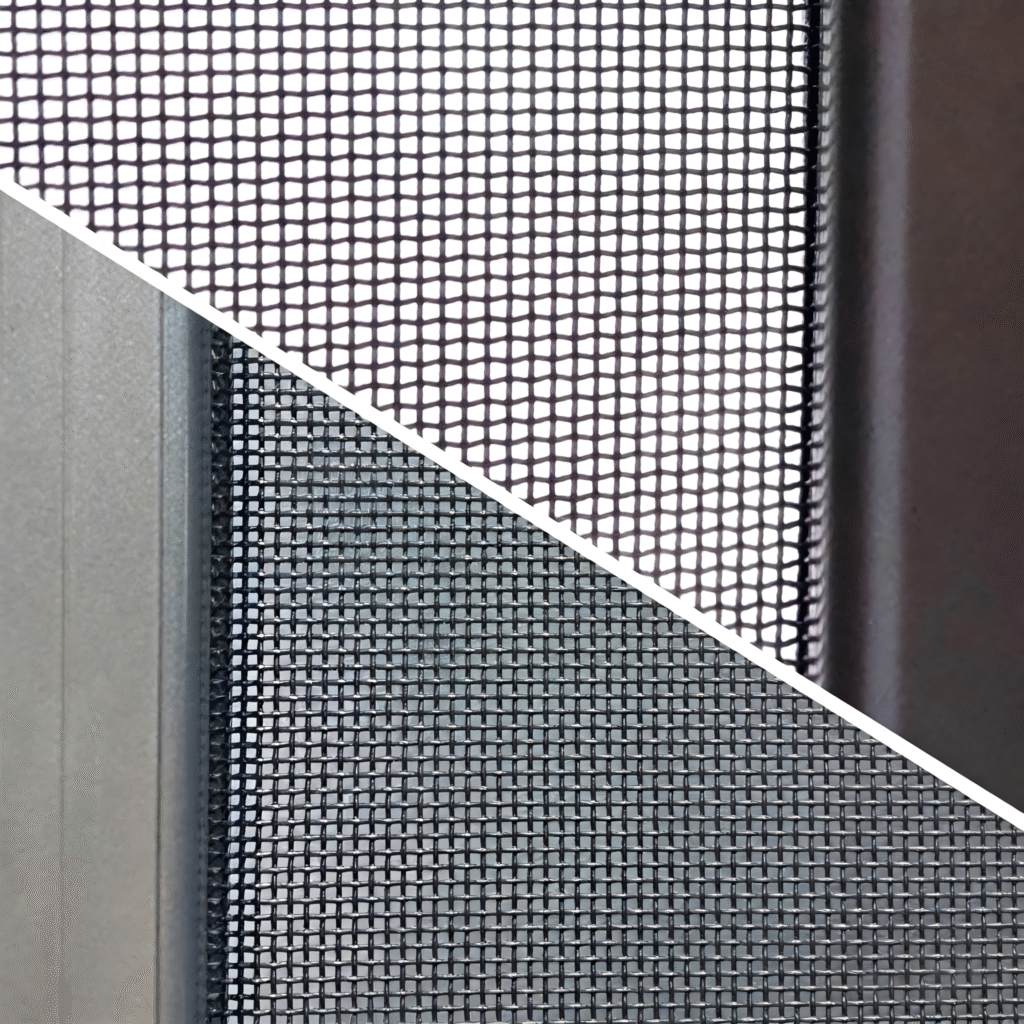

Screen Options

Screen Types: Stainless Steel Mesh, Fiberglass Screen, Retractable Screen
Fly and insect screen is a great way to keep insects out of your home
All fly screens are supplier with fibreglass mesh as standard
Midrail and handle hights depend on customer requirements
Fixed Screen is easy installation and removal
In-swing Screen can help you enjoy nature and keep the bugs out
Rolling Screen let you enjoy an unobstructed view when rulled up
The mesh screen is color coated together with the window to match perfectly.
Our screens are manufactured using aluminum alloy; strong enough to keep the mesh tight for years to come.

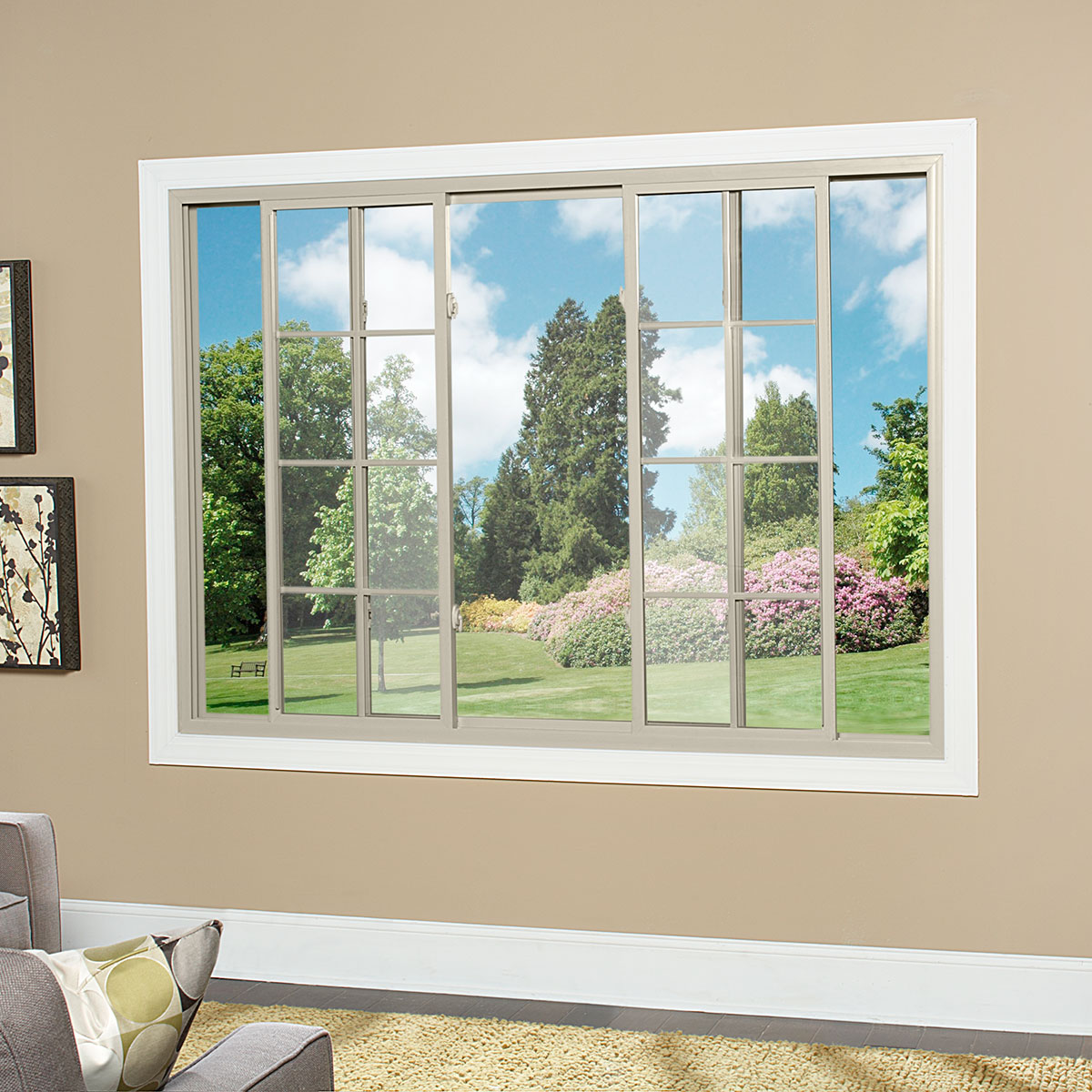

Grille Options

Elegant Design, Easy Maintenance
Decorative grilles mounted between the glass panes enhance visual appeal while making the glass easy to clean from both inside and outsid
Advanced Window Performance
With a tilt-turn operation system, the window meets the AAMA CW-PG60 performance rating. A corner locking mechanism ensures smooth joints and improved corner stability
Superior Weather Sealing
An EPDM foam gasket around the glass panel provides enhanced weatherproofing and allows for easier maintenance compared to standard glued seals.
Durable Construction & CustomizationThe grilles feature a robust truss design for increased structural strength and are available in a color that matches your window’s exterior finish.
