Casement Window

Inquiry Now

Casement Window

Introduce

  • Thickness: 2.0mm
  • Blade width: 600-900mm
  • Bearing: 80KG
  • Blade height: 600-1800mm
Alloy Pro automatic doors are designed for medium-traffic commercial and office environments, offering a perfect balance of performance and cost-effectiveness. The 2.0mm thick aluminium frame and 80KG bearing capacity ensure smooth and reliable operation, while the customizable blade dimensions (width 600-900mm, height 600-1800mm) make it suitable for a variety of entrance sizes. These doors are engineered with precision to deliver long-lasting durability, reducing maintenance costs over time. For projects requiring a complete entrance solution, explore our Alloy Pro door product series to find the perfect match. Our products meet international industry standards for safety and performance, as recognized by the Aluminium Association. Factory-direct customization options allow you to tailor the door to your exact specifications, ensuring a seamless fit for any building.

Inquiry Now

     Features and Perform

  • Heat insulation:UW1.2W/m²K
  • Sound insulation performance:Rw up to 37dB
  • Ultimate wind resistance:+5040Pa
  • Waterproof performance:+720Pa

    Color & Coating Options

  • Alloy Pro Commen Color: Frosted Black, White Powder Coating
  • Silver grey powder coating, Silver anodising with INTERPON powder
  • Woodland grey(Satin), Ironstone(Stain), Shale Grey(Satin)
  • Ultra Silver(Gloss), Dune(Sain), Paperbark(Satin), Primrose(Gloss)
  • White Birch(Gloss), Surfmist(Matt), Architectural White(Satin)
  • Pearl White(Gloss), Silver Pearl Kinetic(Satin), Black(Satin)
  • Monument(Matt), Clear, Residential Bronze
  • Cedar, Mahogany, Honey Gum, Snow Gum
  • Select between factory-prefinished colors for fast delivery, or customized colors to better match your home.

    Glass Options

  • Single Glass(5mm, 6mm, 8mm, 10mm….)
  • Laminated Glass(5mm+0.76pvb+5mm)
  • Double Toughened Glass(5mm+12air+5mm)
  • Toughened Laminated Glass(5mm+12air+0.76pvb+5mm)
  • Triple Toughened Glass(5mm+12air+5mm+12air+5mm)
  • Thickness of single glass: 5-20mm
  • Glass types: Frosted glass, Toughened glass, Low-e coated glass
  • Special performance glass: Fireproof glass, Bulletproof glass
  • Select from various types of glass, including but not limited to: tinted, low-e, sound-proof and burglarproof.

    Screen Options

  • Screen Types: Stainless Steel Mesh, Fiberglass Screen, Retractable Screen
  • Fly and insect screen is a great way to keep insects out of your home
  • All fly screens are supplier with fibreglass mesh as standard
  • Midrail and handle hights depend on customer requirements
  • Fixed Screen is easy installation and removal
  • In-swing Screen can help you enjoy nature and keep the bugs out
  • Rolling Screen let you enjoy an unobstructed view when rulled up
  • The mesh screen is color coated together with the window to match perfectly.
  • Our screens are manufactured using aluminum alloy; strong enough to keep the mesh tight for years to come.

    Grille Options

  • Elegant Design, Easy Maintenance
    Decorative grilles mounted between the glass panes enhance visual appeal while making the glass easy to clean from both inside and outsid
  • Advanced Window Performance
    With a tilt-turn operation system, the window meets the AAMA CW-PG60 performance rating. A corner locking mechanism ensures smooth joints and improved corner stability
  • Superior Weather Sealing
    An EPDM foam gasket around the glass panel provides enhanced weatherproofing and allows for easier maintenance compared to standard glued seals.
  • Durable Construction & CustomizationThe grilles feature a robust truss design for increased structural strength and are available in a color that matches your window’s exterior finish.

    Hardwares&Accessories Options

  • Australia Doric hardware
  • America CMECH hardware
  • German Hoppe hardware
  • China top SMOO Hardware
  • German SIEGENIA hardware
  • China top KINLONG hardware
  • German ROTO hardware
  • German GEZE hardware
  • Alloy Pro always choose seriously hardwares&accessories for customers with 10 years warranty

Advantages

1、 Available Types: Sub-frame, Double flywing , unit connection, window sidelight with dooretc.

2、Reportsforinwardopening,outwardopening,fixed and swing doors are available,Watertightness720PA as well as wind pressure resistance 5000PA. NFRC,CSA and CE certification available.

3、 Sound insulation passes the American ASTME90 standard,with STC valueof 56 decibels

4、 Certified glass by lGCC American standard, energy efficiency and thermal insulation performanceof entire unit passedU.S. NFRC certification, U-values0.20 exceed NA standard which is 0.3

5、 Five options for clips to accommodate single liteglass, laminated glass and triple-lGU glass.

Which Bifold Window Style Matches Your Needs?

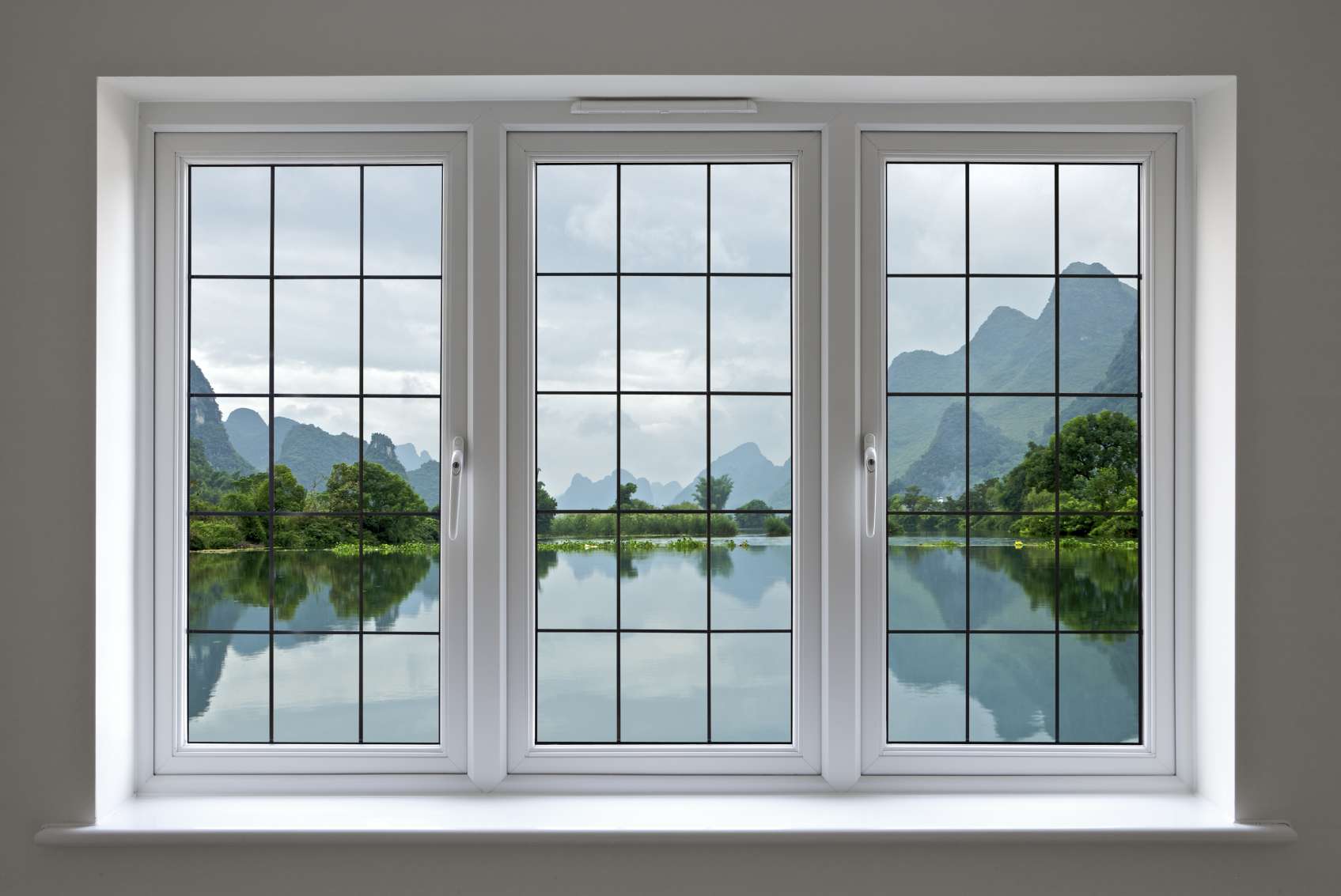

Casement-Window (3)

White-grid aluminum casement window

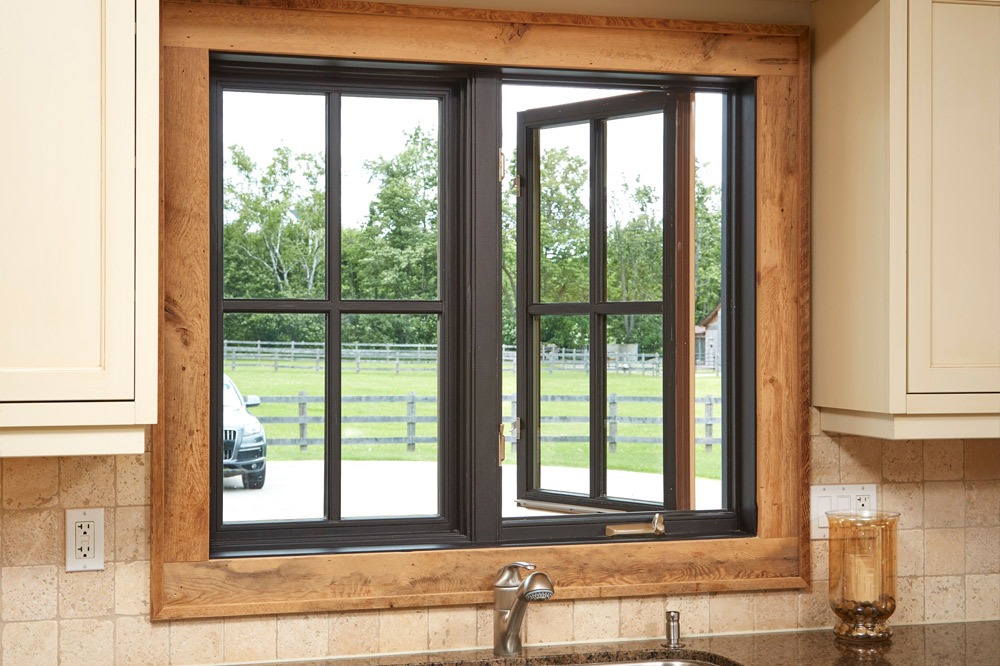

Casement-Window

Black aluminum casement (wood-trimmed)

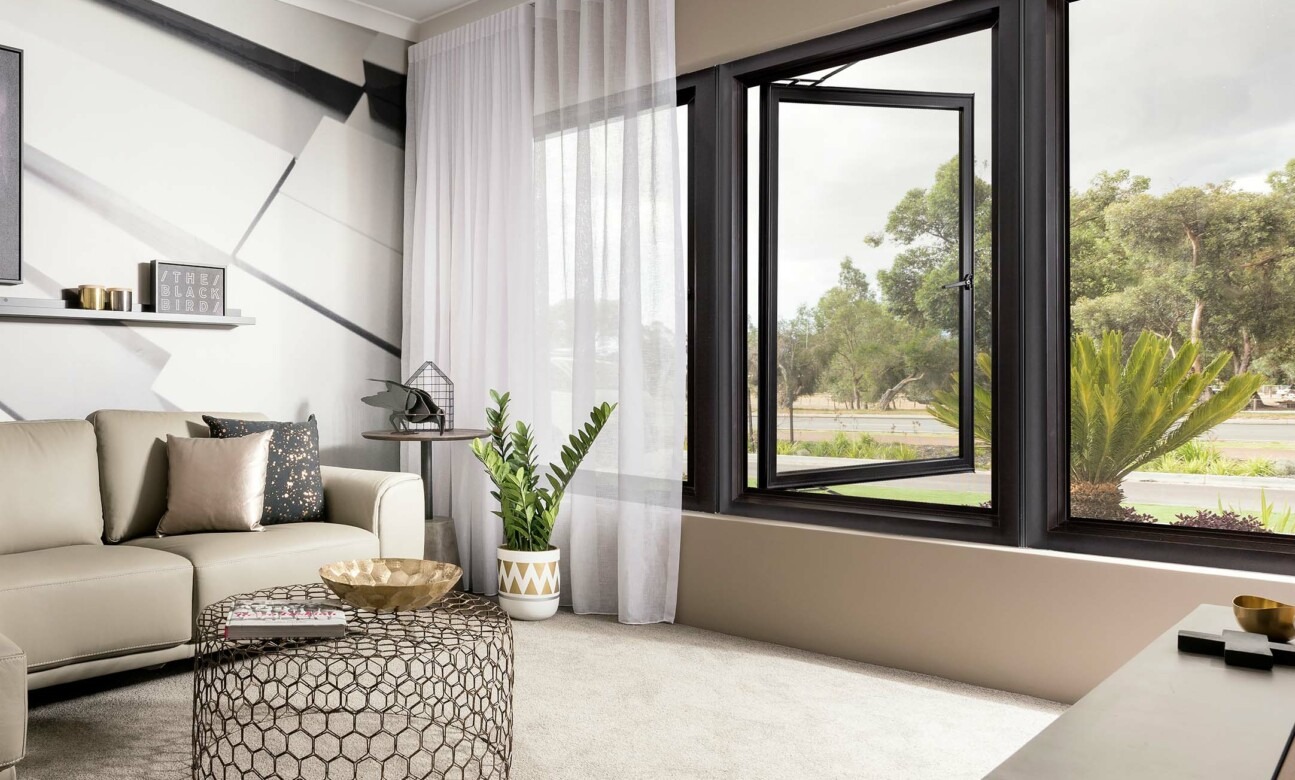

Casement-Window (4)

Modern living room window (wide view)

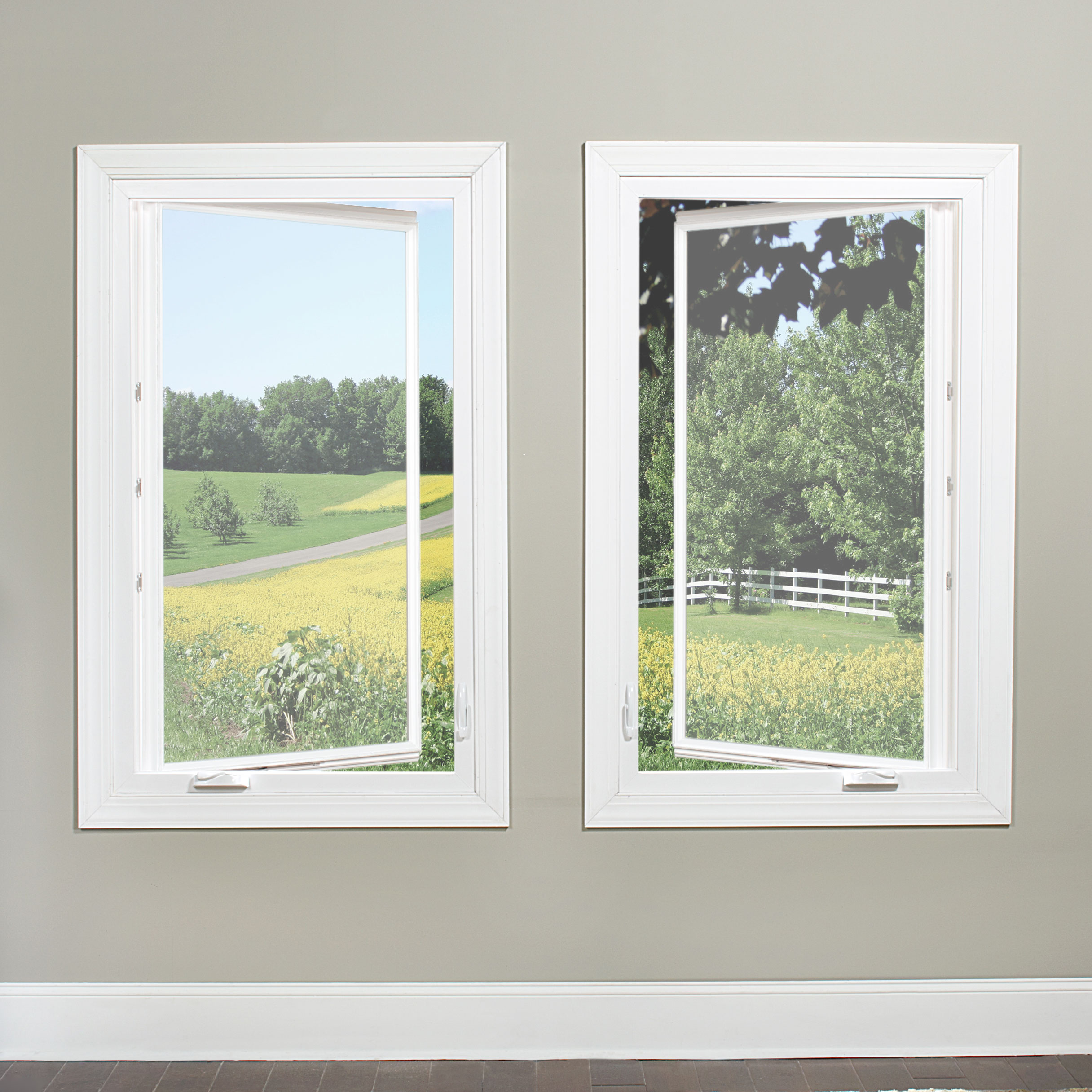

Casement-Window (5)

Pair of white aluminum casement windows

Alloy Pro Approved by AS2047, NFRC, Florida, MiamiDade ....

Alloy pro is the earliest supplier in China who has got the authentic AS2047 certificate from Sai Global and carry the window tests in Australian most authoritative test lab AZUMA in Sydney…

leran more

Alloy Pro Factory For Your Super Upcoming Builds

About Us

Alloy Pro is your professional partner in aluminum solutions. With 15 years of industry expertise, we have served over 300 global projects across building curtain walls, smart doors & windows, and industrial aluminum profiles. Our core technologies include German precision cutting and nano-surface treatment, improving corrosion resistance by 50%.



We offer star products such as 2cm ultra-narrow frame windows and 1-hour fire-resistant insulated windows, alongside fully customizable industrial aluminum components. Committed to sustainable manufacturing, we are ISO 14001 certified and achieve an aluminum recycling rate of over 95%.



Supported by our self-built international supply chain, we provide tailored solutions and reliable delivery to markets in Europe, Southeast Asia, North America, and Africa. Each project is backed by dedicated one-on-one engineering support, a 5–10 year product warranty, and 24/7 after-sales service.



Choose Alloy Pro to build your ideal space with precision, quality, and responsibility.

leran more

Aluminium Bifold Doors Manufactured By Alloy Pro Factory

Frequently Asked Questions

With 15 years of expertise and ISO certification, AlloyPro combines Foshan’s supply chain efficiency with German precision technology. We offer factory-direct pricing and world-class durability that meets international architectural standards.

We are a direct manufacturer with our own factory in Foshan. We manage the entire process—from R&D and extrusion to surface treatment—ensuring superior quality control and flexible customization.

Yes. Our systems are engineered for global compliance, including AS2047 for Australia and NFRC/AAMA requirements for North America, focusing on high thermal performance and structural safety.

Our standard lead time is 25–35 days. With 15+ years of experience in global real estate projects, we are fully equipped to handle high-volume bulk orders with guaranteed on-time delivery.

We offer a full spectrum of RAL powder coatings, PVDF finishes, and wood-grain textures. Our nano-scale treatment increases corrosion resistance by 50%, ensuring long-lasting color stability.

We use protective film, EPE foam, and reinforced wooden crates to ensure zero-damage transit. Yes, we support customized packaging and labeling to meet your specific logistics or branding needs.
